High-Performance LED Sports Lighting — 500W-1200W Wattage - Built for Demanding Outdoor Applications

Parameter

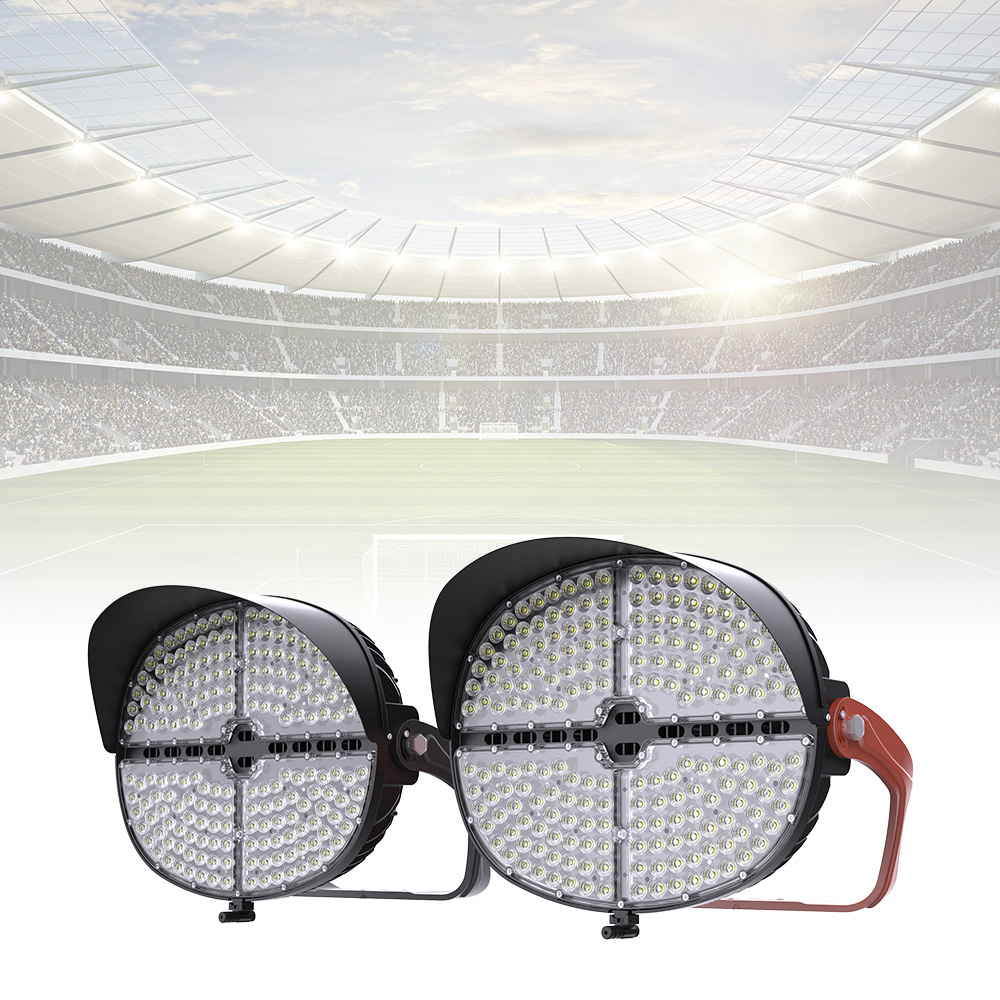

ROMANSO L2309 series is a powerful stadium light designed withRemote Power System. This Remote Power System not only makesthefixture easy to install, greatly improves the flexibility of on-siteinstallation, but also simplifies the driver maintenance operation stepsto thegreatest extent, eliminating the cost to take the bucket or cranebasket equipment for maintenance. Precision engineered opticsprovide excellent high output and high efficiency, making them idealsolutions for municipal, school and semi-professional outdoor sportslighting.

L2309-01

Model	RMS-FL-L3-500W	RMS-FL-L3-600W	RMS-FL-L3-850W	RMS-FL-L3-1000W	RMS-FL-L3-1200W
Wattage	500W	600W	850W	1000W	1200W
Luminous Flux	75,000Im	90,000Im	150,000Im	127,500Im	180,000Im
LPW(lm/W)	150
Color Temperature	4000K/5000K/5700K
NEMA Rating	2H2V \| 3H3V \| 4H4V 5H5V \| 6H6V
Input Voltage	AC100-277V,AC200-480,50/60Hz
LED Brand	CREE XTE
Power Supply	Meanwell
Life Hours	100,000
CRI	Ra>70
PF	>0.9
IP Rating	IP66
Operating Temperature Range	-40°C to 50°C
Remarks	Surge:10KA

L2309-02 L2309-03

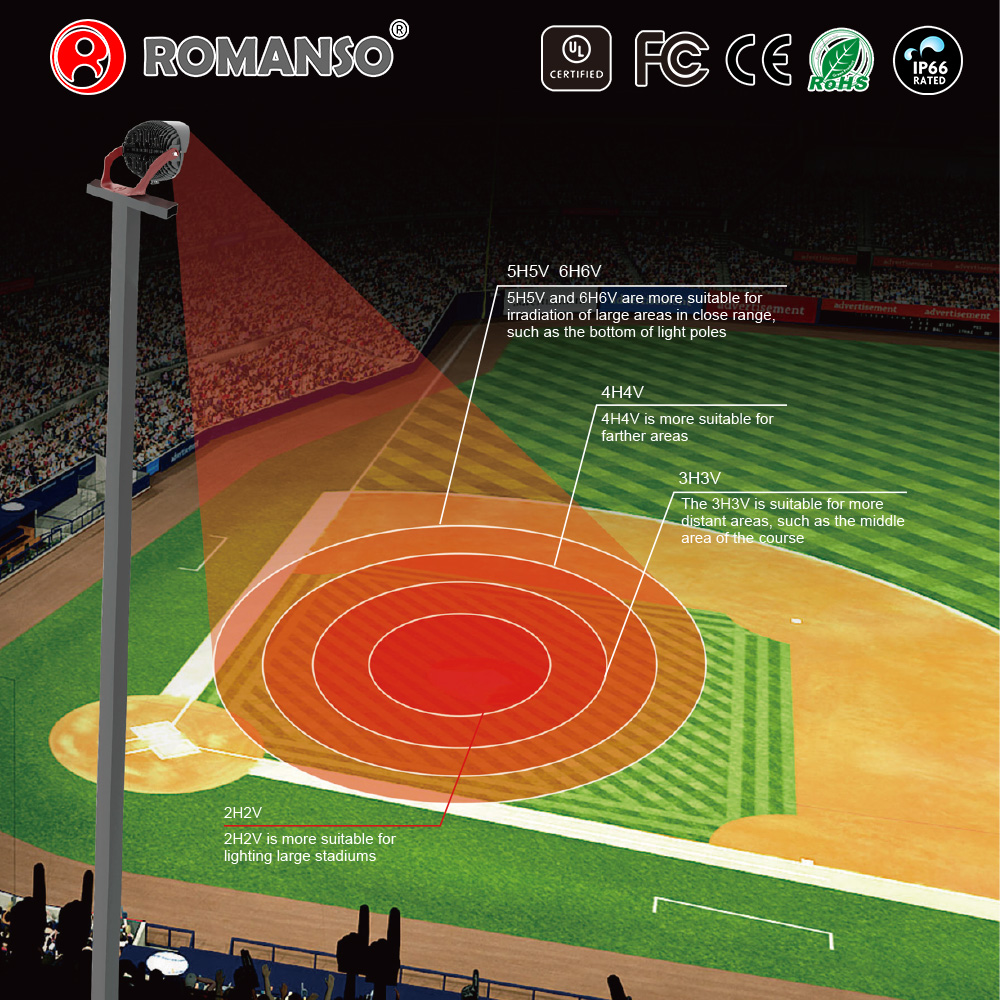

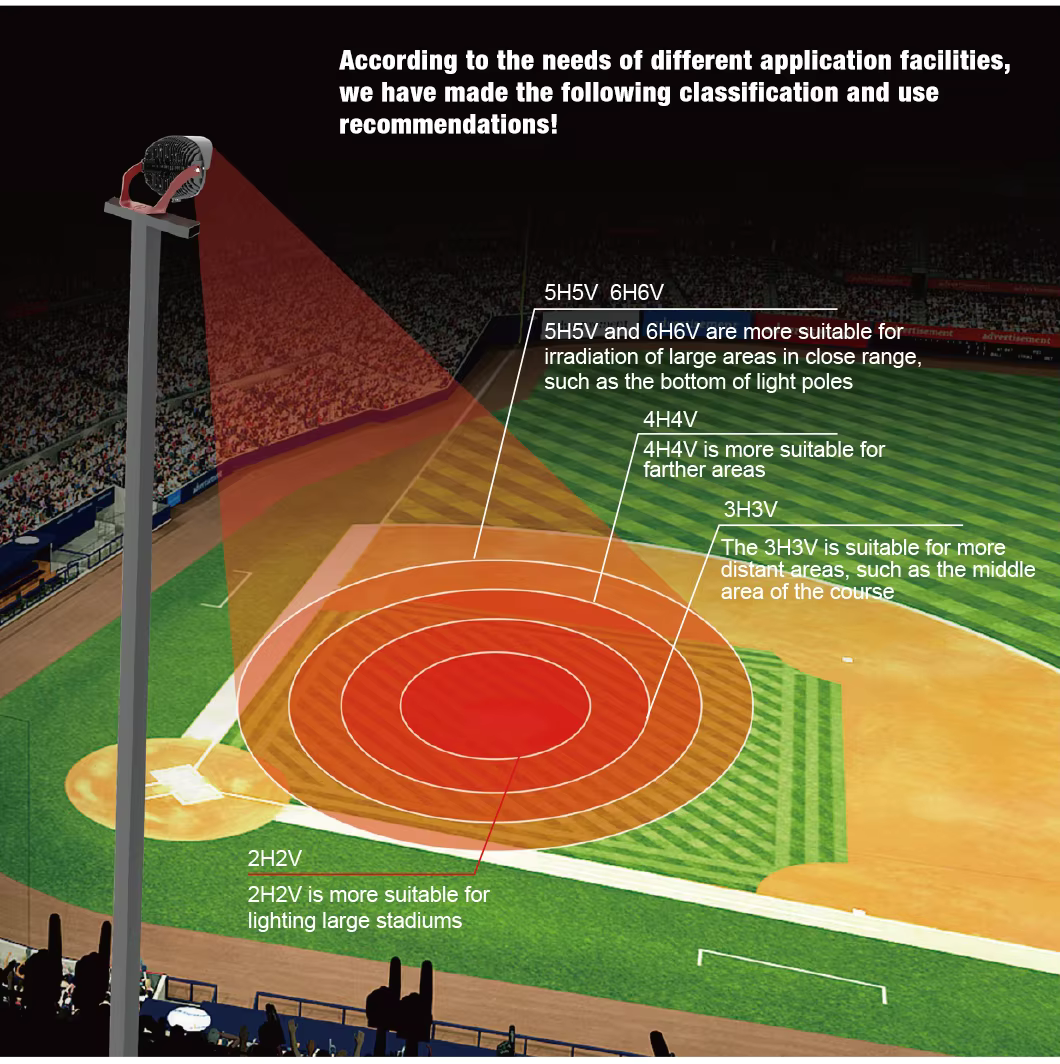

Flexible Beam Distribution

Available in NEMA 2Hx2V, 3Hx3V, 4Hx4V, 5Hx5V, and 6Hx6V distributions to meet diverse application requirements.

L2309-04

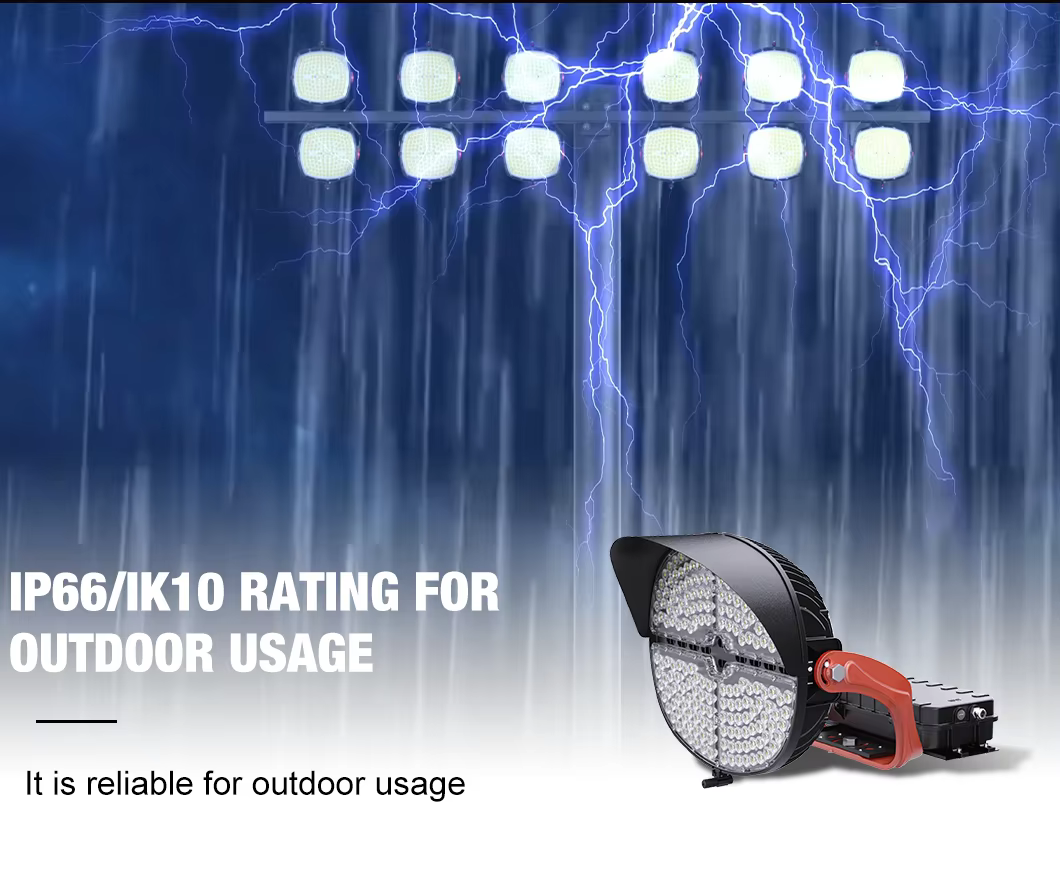

Built for the Outdoors

IP66 rated for reliable performance in demanding outdoor environments.

L2309-05 L2309-06

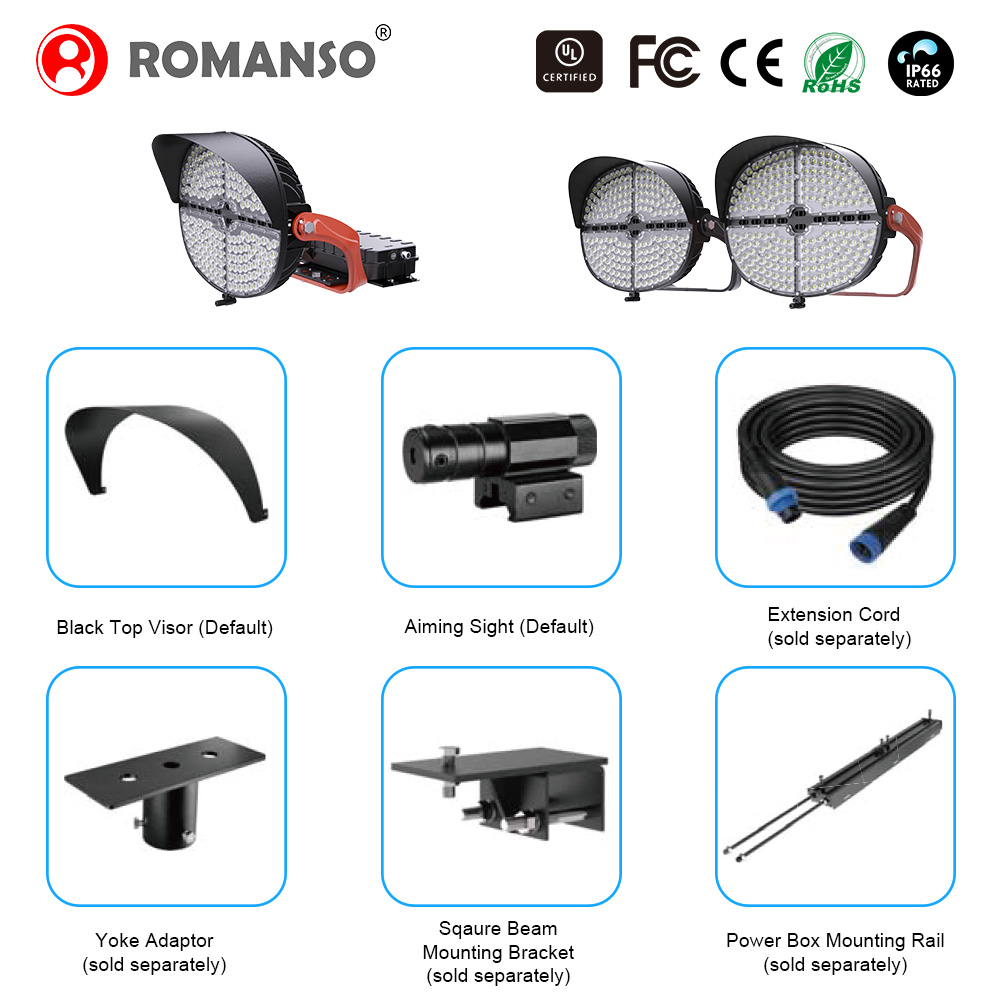

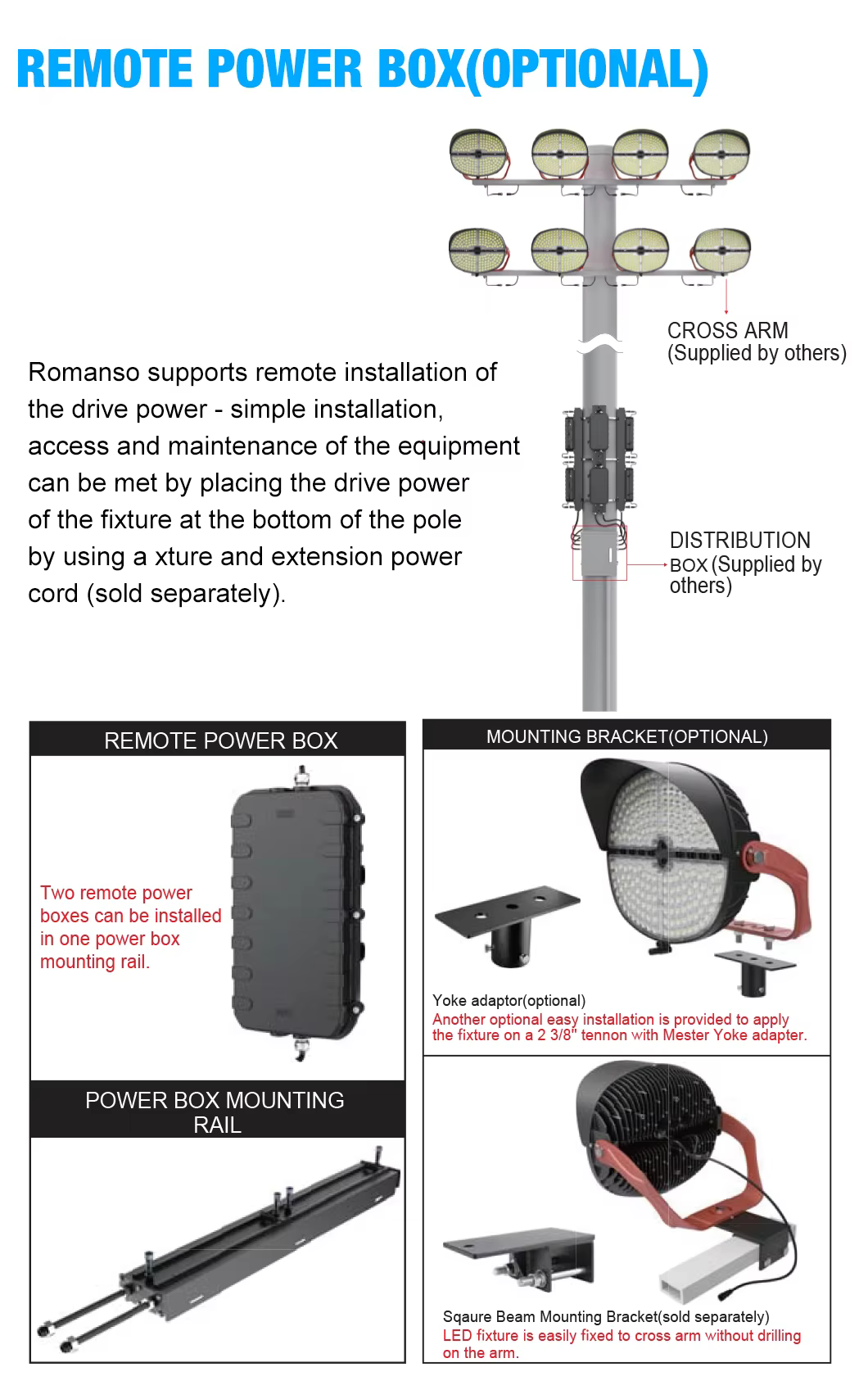

REMOTE POWER BOX (OPTIONAL)

Romanso supports remote installation of the drive power - simple installation, access and maintenance of the equipment canbe met by placing the drive power of the fixture at the bottom of the pole by using a xture and extension power cord
(sold separately).

POWER BOX ATTACHED (OPTIONAL)

Romanso supports separate power can be installed on the top of the light pole as a whole unit, which is simple and fast way.without additionall abor costs to install the driver. It is also beneficial to reduce the power consumption of fixtures caused by
remote wiring, save energy and improve efficiency.

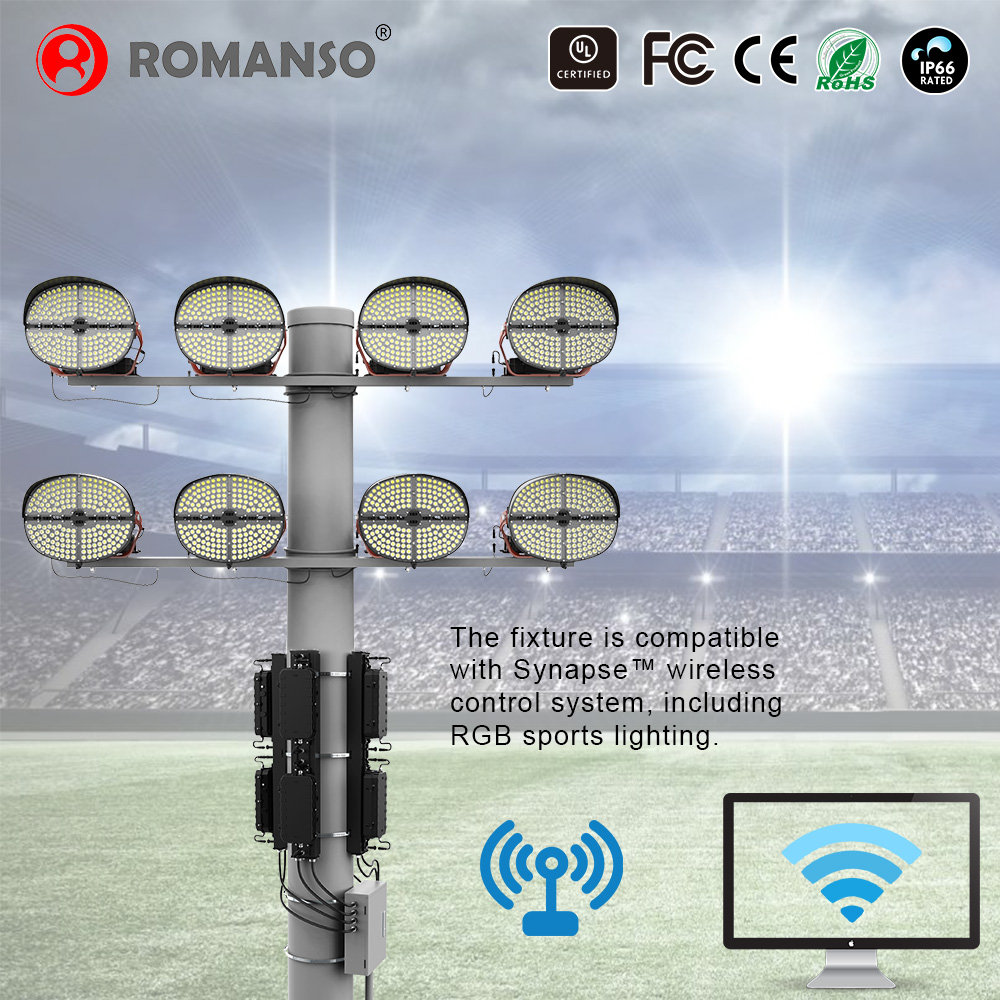

INTEGRATED CONTROLS
The fixture is compatible with Synapse t wireless control system, including RGB sports lighting. It offers a smar, stable and imaginative lighting control solution to your sports facility.

L2309-08
